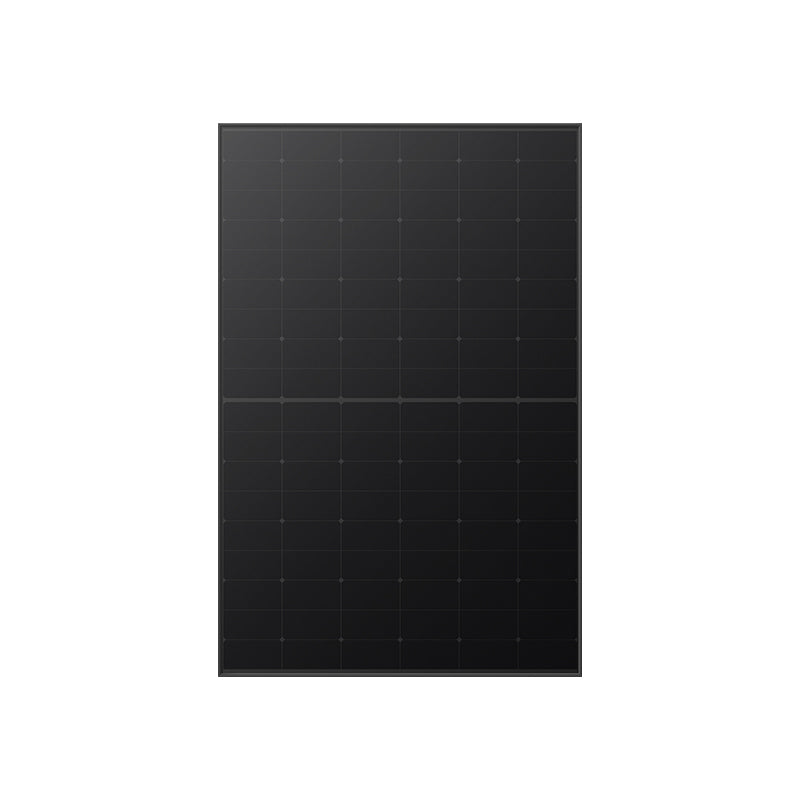

PHOTOVOLTAIC MODULE LONGI 460W, HI-MO 6 ARTIST, MONOCRYSTALLINE, FULL BLACK, WHITE PAD, FRAME 30 MM

MAX MODULE  EFFICIENCY  23.0%

POWER TOLERANCE  0~3%

FIRST YEAR POWER DEGRADATION  <1%

YEAR 2-25 POWER DEGRADATION  0.40%

25-year Warranty for Materials and Processing

25-year Warranty for Extra Linear Power Output



Mechanical Parameters:

Cell Orientation:  108 (6×18)

Junction Box:   IP68

Output Cable:  4mm2, ±1200mm length can be customized

Glass:   Single glass, 3.2mm coated tempered glass

Frame:   Anodized aluminum alloy frame

Weight:   21.6kg

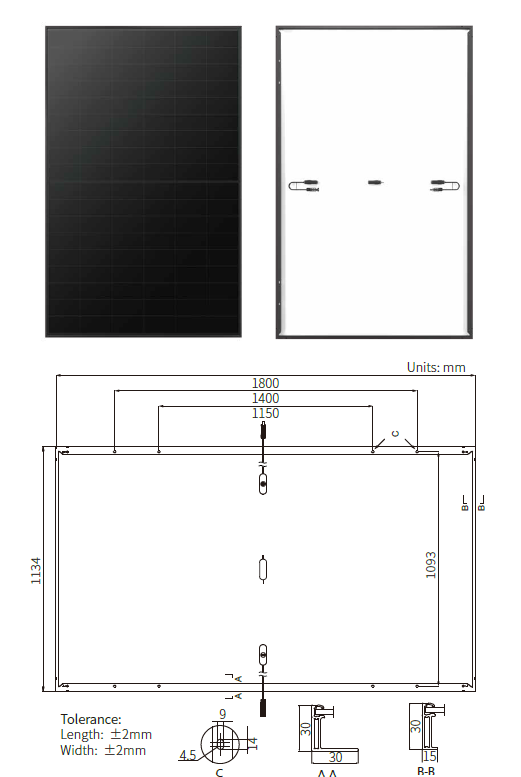

Dimension:   1800×1134×30mm



Electrical Characteristics

Module Type:   LR7-54HTB-460M

Testing Condition:     STC  NOCT

Maximum Power (Pmax/W):    460  / 344

Open Circuit Voltage (Voc/V):   39.51  /  37.10

Short Circuit Current (Isc/A):   14.77  / 11.93

Voltage at Maximum Power (Vmp/V):   33.34 /  30.42

Current at Maximum Power (Imp/A);  13.80 / 11.31

Module Efficiency(%):   22.5%

Mechanical Loading

Front Side Maximum Static Loading:   5400Pa

Rear Side Maximum Static Loading:     2400Pa

Hailstone Test:  25mm Hailstone at the speed of 23m/s



Temperature Ratings (STC)

Temperature Coefficient of Isc:   +0.050%/℃

Temperature Coefficient of Voc:    -0.230%/℃

Temperature Coefficient of Pmax:   -0.280%/℃

Operating Parameters

Fire Rating:   IEC Class C

Protection Class:   Class II

Nominal Operating Cell Temperature:  45±2℃

Maximum Series Fuse Rating:  25A

Maximum System Voltage: DC1500V (IEC)

Power Output Tolerance:   0 ~ 3%

Operational Temperature:  -40℃   +85℃
